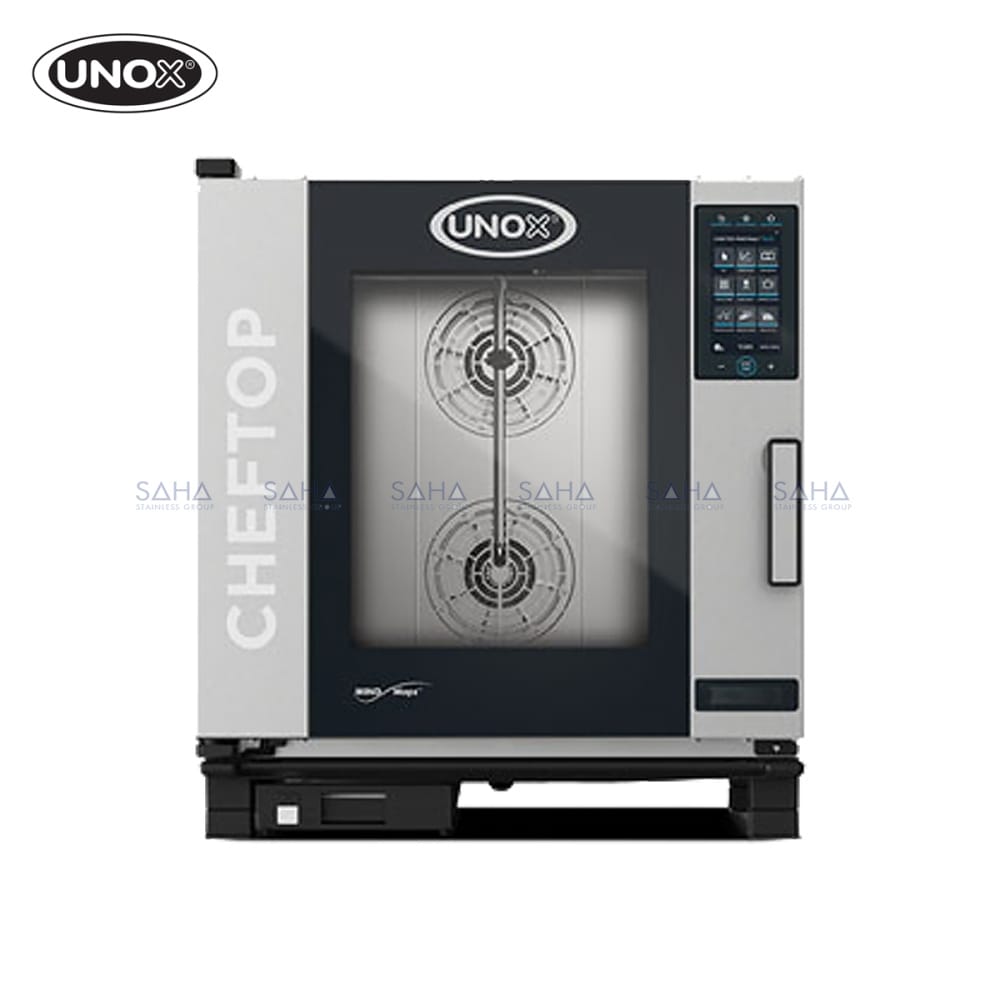

Unox – Cheftop – Mind.Maps Countertop Plus – XEVC-0711-GPRM

Unox – Cheftop – Mind.Maps Countertop Plus – XEVC-0711-GPRM

  • Combi steamer
  • Gas
  • 7 Trays GN 1/1
  • Hinged left (right hand door)
  • 5″ Touch control panel

DESCRIPTION

Technologically advanced combi oven for gastronomy cooking processes (dehydrating, steaming, low temperature cooking, sous vide cooking, roasting, grilling, pan frying, regeneration and plate regeneration) and for fresh or frozen baking thanks to the Unox Intensive Cooking and Intelligence Performance technologies which guarantee perfect results and repeatability for any load size. Automatic management of cooking processes (CHEFUNOX) for perfect results even without trained staff.



Share

รายละเอียดเพิ่มเติม

STANDARD COOKING FEATURES

Manual cooking

  • Temperature: 86 °F – 500 °F
  • Up to 9 cooking steps
  • Control: humidity or dry air set by 10%
  • Delta T cooking with core probe
  • Point core probe
  • SOUS-VIDE core probe



Programs

  • 1000+ Programs
  • CHEFUNOX: choose something to cook from the library and the oven will automatically set all the parameters
  • TIME: manages up to 10 cooking processes at the same time
  • EN.PLACE: synchronises the insertion of pans so that all the dishes are ready at the same time
  • Maps™: draw the cooking processes directly on the display
  • COOK: ready to use settings for a quick start



ADVANCED AND AUTOMATIC COOKING FEATURES

Unox Intelligent Performance

  • Cooking™: automatically regulates the cooking parameters to  ensure repeatable results
  • CLIMALUX™: total control of the humidity in the cooking chamber
  • Preheating: sets automatically the temperature and the duration of the preheating
  • Soft: manages the heat rise to make it more delicate
  • Klean: estimates how dirty the oven is and suggests appropriate automatic cleaning

Unox Intensive Cooking

  • Maxi™: rapidly extracts the humidity from the cooking chamber
  • Maxi™: produces saturated steam
  • Maxi™: manage fans auto-reverse and pulse function.
  • Steam: increases the saturation and temperature of steam

Data Driven Cooking

  • Control and monitor the operating conditions of your ovens in real-time, create and share new recipes. The AI transforms the consumption data into useful information in order to increase your daily profit. Create, understand, improve

APP & WEB SERVICES

  • Data Driven Cooking app & webapp
  • Top Training app
  • Combi guru App

STANDARD TECHNICAL FEATURES

  • Klean™: automatic washing system
  • Automatic special washing behind the fan guard
  • Cooking chamber in high-resistance AISI 304 stainless steel with rounded edges
  • Triple glass
  • Cooking chamber lighting through LED lights embedded in the door
  • Tray supports with anti-tipping system
  • Drip collection system integrated in the door and functional even with the door open
  • 4-speed fan system and high-performance circular resistance
  • Integrated DET&Rinse™ detergent container
  • Integrated Wi-Fi
  • Wi-Fi / USB data: download/upload HACCP data
  • Wi-Fi / USB data: download/upload programs



DIMENSIONS AND WEIGHT

  • Width 750 mm
  • Depth 783 mm
  • Height 842 mm
  • Net Weight 104 kg
  • Pan spacing 67 mm



POWER AND GAS SUPPLY

STANDARD

  • Voltage 220-240 V
  • Phase 1PH+N+PE
  • Cycle 50-60 Hz
  • Total power 1 Kw Maximum Amp Draw 3.5 A
  • Required breaker size * 16 A
  • Power cable requirement H07RN-F 3G 1,5 mm²
  • Cord diameter 10 mm
  • Plug Schuko

GAS

  • Gas type : G110, G20, G25, G25.1, G25.3, G30, G31
  • Nominal gas power : 16 kW (19 kW  G20, G25, G25.1, G25.3, G30, G31 Only)
  • Inlet pressure : 5-40 mbar
  • Gas valve orifice : 5.5 mm (G30, G31 Only)
  • Hook-up : 3/4″ NPT
