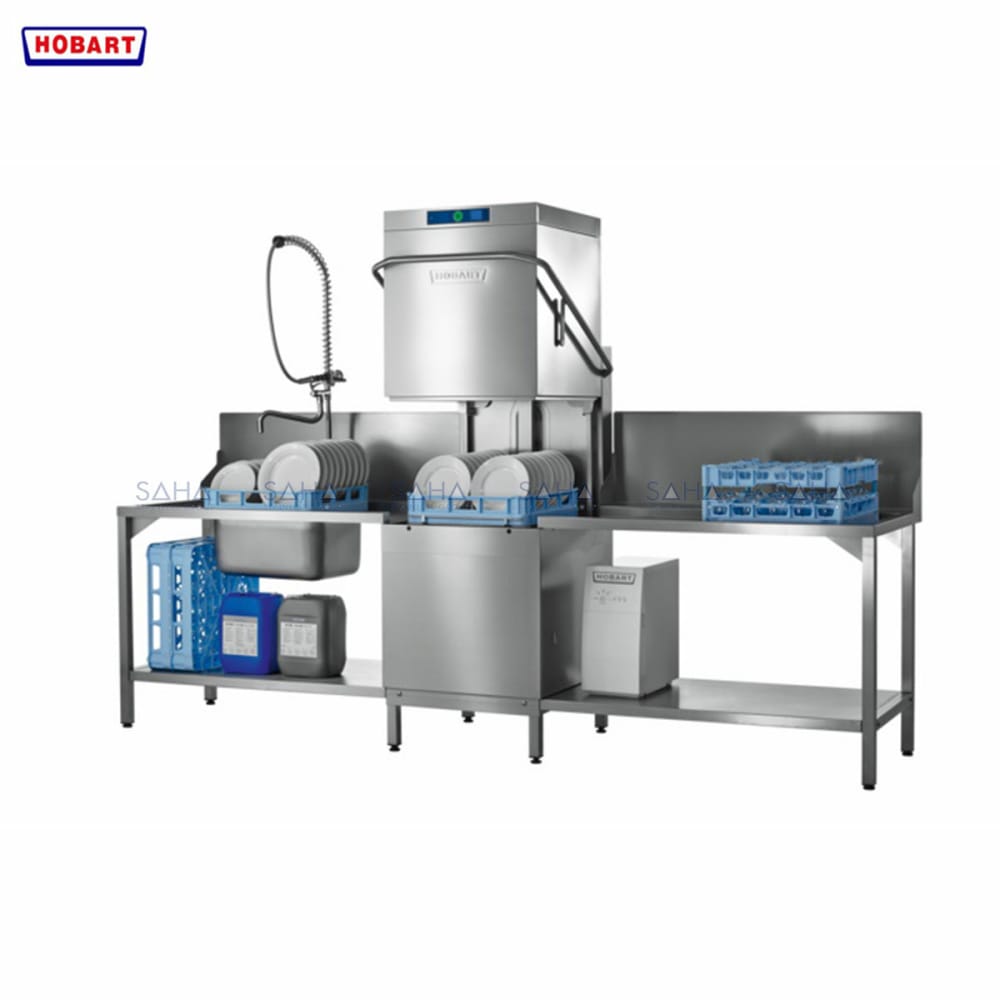

Hobart – Dishwasher – PROFI AMXX

Description

Product Features

• Hood-type dishwasher for straight through or corner operation
• Nominal capacity up to 70 racks/h or 1,260 plates/h or 2,520 glasses/h
• 6 automatic cycles: short, standard, intensive, starch-removal, permanent, hygiene
• Multi-Setting: booster capacity may be reduced from 12.4 kW to 6.2 kW if connected with hot water
• Heat and noise insulated hood
• Strainer soil sensor
• Refill signal (detergent / rinse aid)
• Self-cleaning programme
• USB-interface for comfortable download of operational data
• Ready to install – completely equipped: fill / drain hose, electrical cable, detergent dispenser, rinse aid dispenser, rinse pump, drain pump, back-flow preventer
• Tank, frame, wash / rinse arms and panels are stainless steel 1,4301

Technical Data

• Cycle times* 52 / 75 / 180 sec. and special cycles
• Water consumption 2 l/rack
• Tank capacity 40 l
• Tank heating 5 kW
• Power supply 400 / 50 / 3N
• Booster loading – Standard 4 kW
• Booster loading – Alternative 2 kW
• Total loading – Standard 3 | 3 x 32 A
• Total loading – Alternative 1 | 3 x 25 A
• Wash pump 1 kW
• Rack size 500 x 500 mm
• Loading height 440 mm
• Noise level 67 dB (A)
• Weight (gross / net) 133 / 113 kg
• *Thermostop guarantees required temperatures with cold water, the actual cycle times extend accordingly.
• For corner operation we recommend to make the right side of the machine accessible for service.
• For machine protection the water hardness should not exceed 3°dH, if higher we recommend using an integrated water softener or a HOBART HYDROLINE water treatment system.
