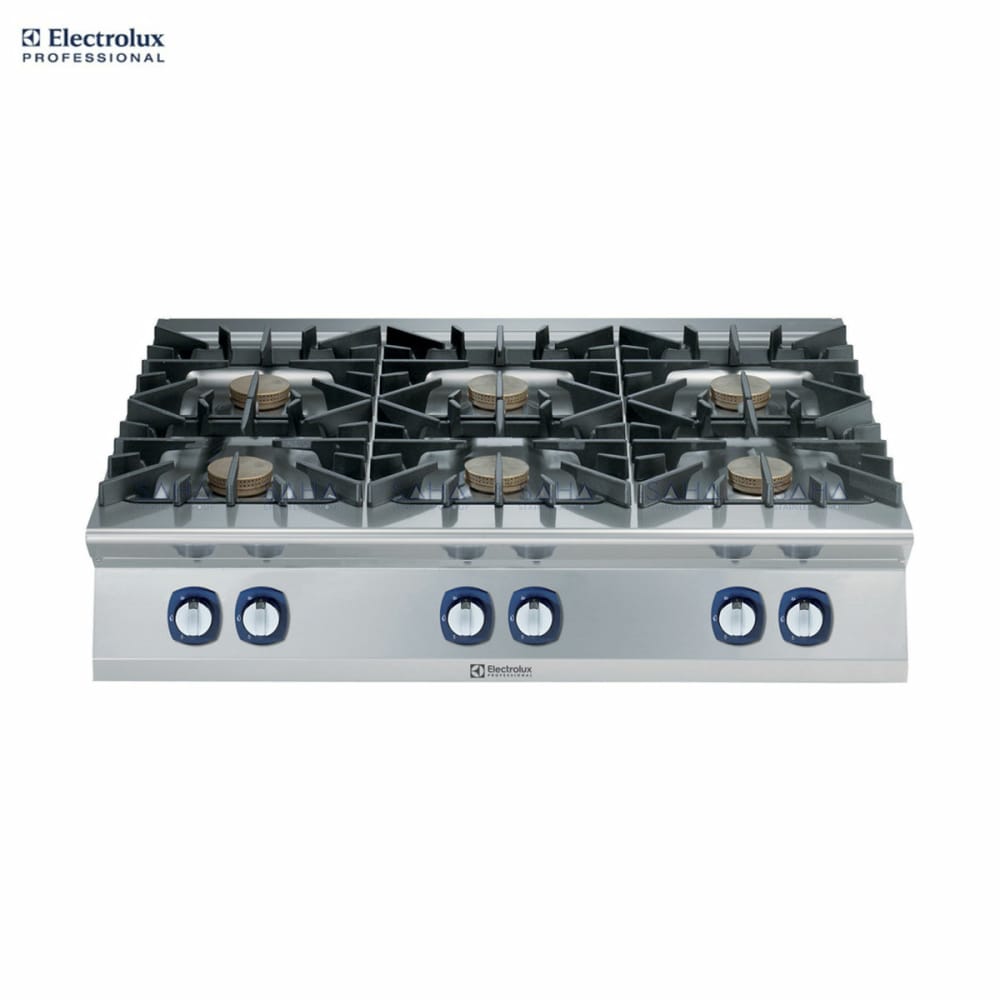

Electrolux – 900XP – 6-Burner Gas Boiling Top, 10 kW – 391012

Description

Product Features

• Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
• The six 10 kW high efficiency burners are available in 100 mm diameter with continuous power regulation from 2.2 kW to 10 kW.
• Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
• Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
• Burners with optimized combustion.
• Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
• Protected pilot light.
• The special design of the control knob system guarantees against water infiltration.
• IPX5 water protection.
• Unit is 930 mm deep to give a larger working surface area.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• AISI 304 stainless steel worktop, 2mm thick.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Specifications

Gas

• Gas Power: 60 kW
• Standard gas delivery: Natural Gas G20 (20mbar)
• Gas Type Option: LPG;Natural Gas
• Gas Inlet: 1/2″

Key Information:

• Front Burners Power: 10 – 10 kW
• Back Burners Power: 10 – 10 kW
• Middle Burners Power: 10 – 0/10 – 0 kW
• Back Burners Dimension – mm Ø 100 Ø 100
• Front Burners Dimension – mm Ø 100 Ø 100
• Middle Burners Dimension – mm Ø 100 Ø 100
• External dimensions, Width: 1200 mm
• External dimensions, Height: 250 mm
• External dimensions, Depth: 930 mm
• Net weight: 110 kg
• Shipping weight: 102 kg
• Shipping height: 530 mm
• Shipping width: 1020 mm
• Shipping depth: 1270 mm
• Shipping volume: 0.69 m³
• If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
• Certification group: N9CG
