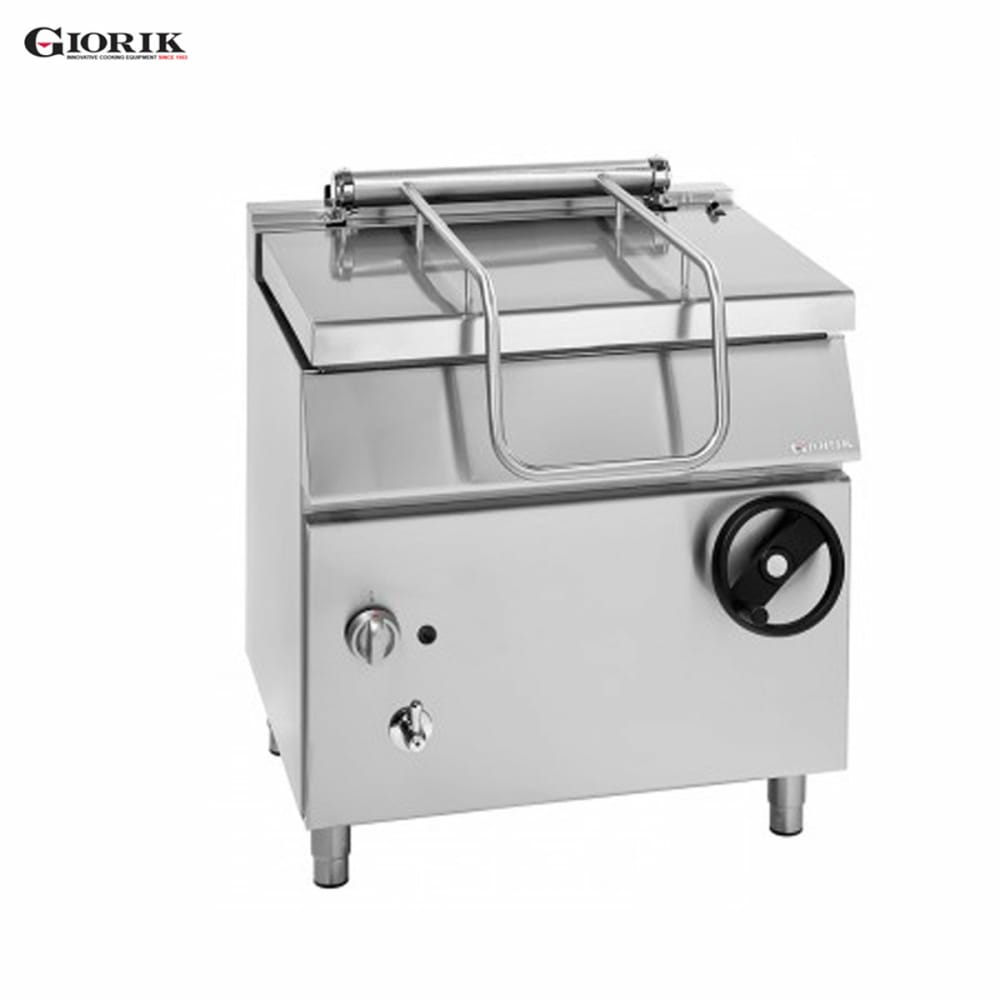

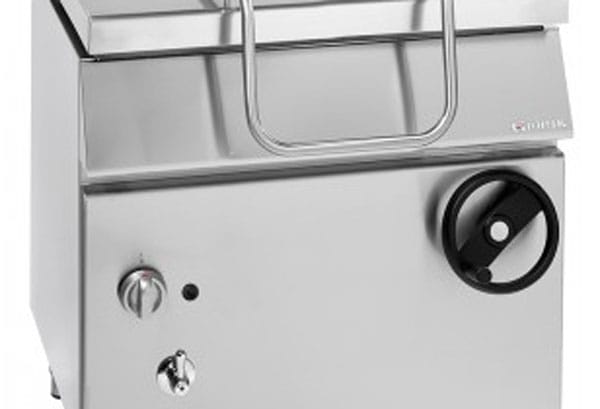

Giorik – Unika 700 – Gas Bratt Pans – Compound Tank – BG74CM

รายละเอียดเพิ่มเติม

Product Features

• Exteriors and supporting structure made of steel throughout
• Stainless steel tank with compound bottom (Fe430 and AISI316); prounded corners
• Height-adjustable steel feet
• M = Manual tilting of the pan with crank handle
• Pan filling by means of filling tap and pipe
• Steel lid with large handle
• Stainless steel tubular burners with piezo ignition and pilot flame
• Temperature regulation (100 to 330 °C)
• Temperature controlled by thermostatic valve fitted with safety thermocouple
• Tank capacity 50 lt

General technical data

• Dimensions: (mm) 800x700x900
• Volume: (m³) 0,9
• Weight:: (Kg) 160

Gas connection

• kW 12
• UNI ISO 71 R ½

Electrical connection

• kW 0,3
• 230V/1 50/60Hz

Water Connection

• Cold water connection 1/2”
