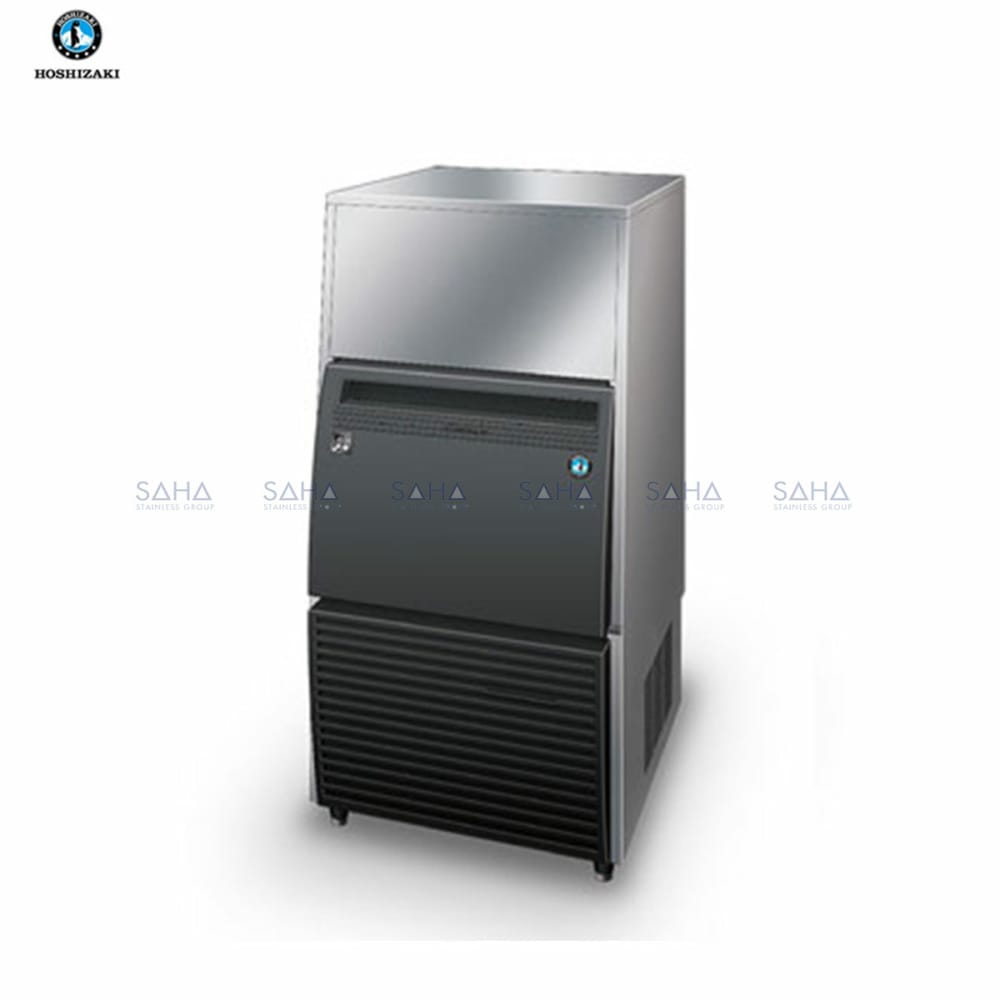

Hoshizaki – Ice Machine – IM-100A

รายละเอียดเพิ่มเติม



DIMENSIONS (WxDxH):  Body : 660 x 570 x 1200 mm / Leg Height : 90-120 mm

PACKED DIMENSIONS  (WxDxH): 760 x 680 x 1389 mm

WEIGHT (NETT/GROSS): 76 KG / 95 KG

AMPERAGE / STARTING AMPERAGE: 3.5A / 9A

ELECTRICAL CONSUMPTION: 550 W

REFRIGERANT CHARGE: R404A

HEAT REJECTION (AT32°C/WT21°C): 1220 W (1049 kcal/h)

STORAGE CAPACITY: 52 KG



OPERATING CONDITIONS: • Voltage Range: ±6% • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             112 KG

(AT21°C/WT15°C)             108 KG

(AT32°C/WT21°C)             88 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.21 m3

1.9L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         28 MIN

PER CYCLE           1.8KG / 80 PCS
