Hoshizaki – Ice Machine – IM-240NE-23

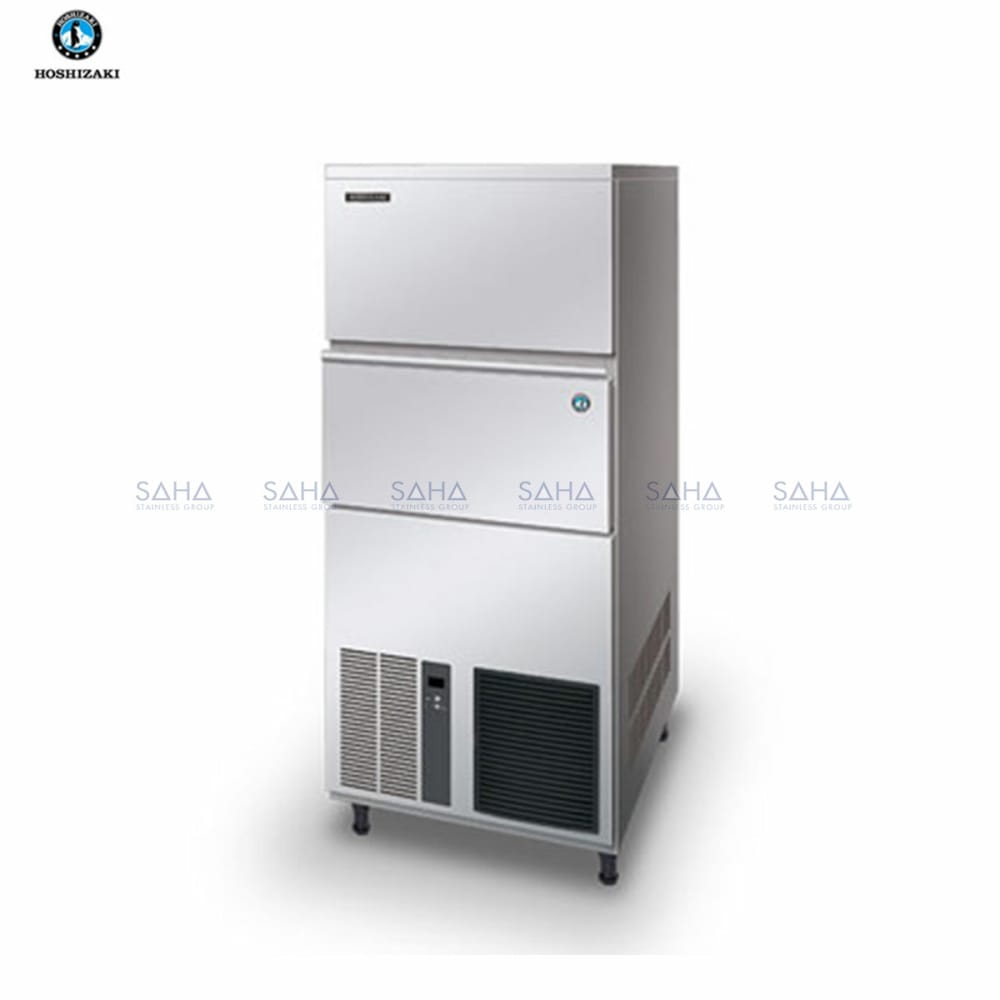

Hoshizaki IM-240NE-23 Cube Ice Maker

DAILY ICE PRODUCTION CAPACITY OF UP TO 225KG



Share

รายละเอียดเพิ่มเติม

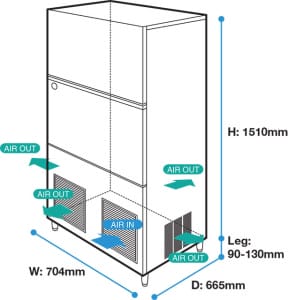

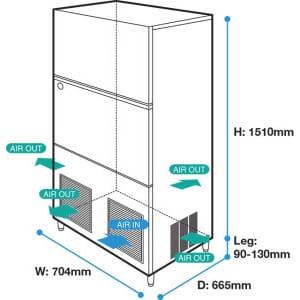

DIMENSIONS (WxDxH):  Body : 704 x 665 x 1510 mm  / Leg Height : 90-130 mm

PACKED DIMENSIONS  (WxDxH): 840 x 785 x 1695 mm

WEIGHT (NETT/GROSS): 111 KG / 122 KG

AMPERAGE / STARTING AMPERAGE: 6.6A / 35A

ELECTRICAL CONSUMPTION: 1320 W

REFRIGERANT CHARGE: R404a

HEAT REJECTION (AT32°C/WT21°C): 2870 W (2470 kcal/h)

STORAGE CAPACITY: 110 KG



OPERATING CONDITIONS: • Voltage Range: 198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50 Hz*60Hz units are available upon request



ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             225 KG

(AT21°C/WT15°C)             215 KG

(AT32°C/WT21°C)             195 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.40 m3

1.9L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         17 MIN

PER CYCLE           2.38 KG / 140 PCS

ข้อมูลเพิ่มเติม

Brand

HOSHIZAKI
