Hoshizaki – Ice Machine – KM-1301SAH-E

รายละเอียดเพิ่มเติม



DIMENSIONS (WxDxH):  1225 x 695 x 695 mm

WEIGHT (NETT/GROSS): 143 kg

AMPERAGE / STARTING AMPERAGE: 11.8 A

ELECTRICAL CONSUMPTION: 5.1

REFRIGERANT CHARGE: R404a



OPERATING CONDITIONS: • Voltage Range:198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50Hz

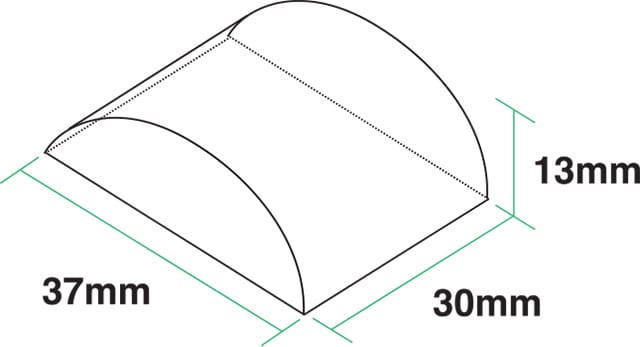

ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             505 KG

(AT27°C/WT21°C)             471 KG

(AT32°C/WT21°C)             455 KG



WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.6 m3

1.3L / 1KG ICE



ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         42 MIN

PER CYCLE           13.2 KG / 1440 PCS
