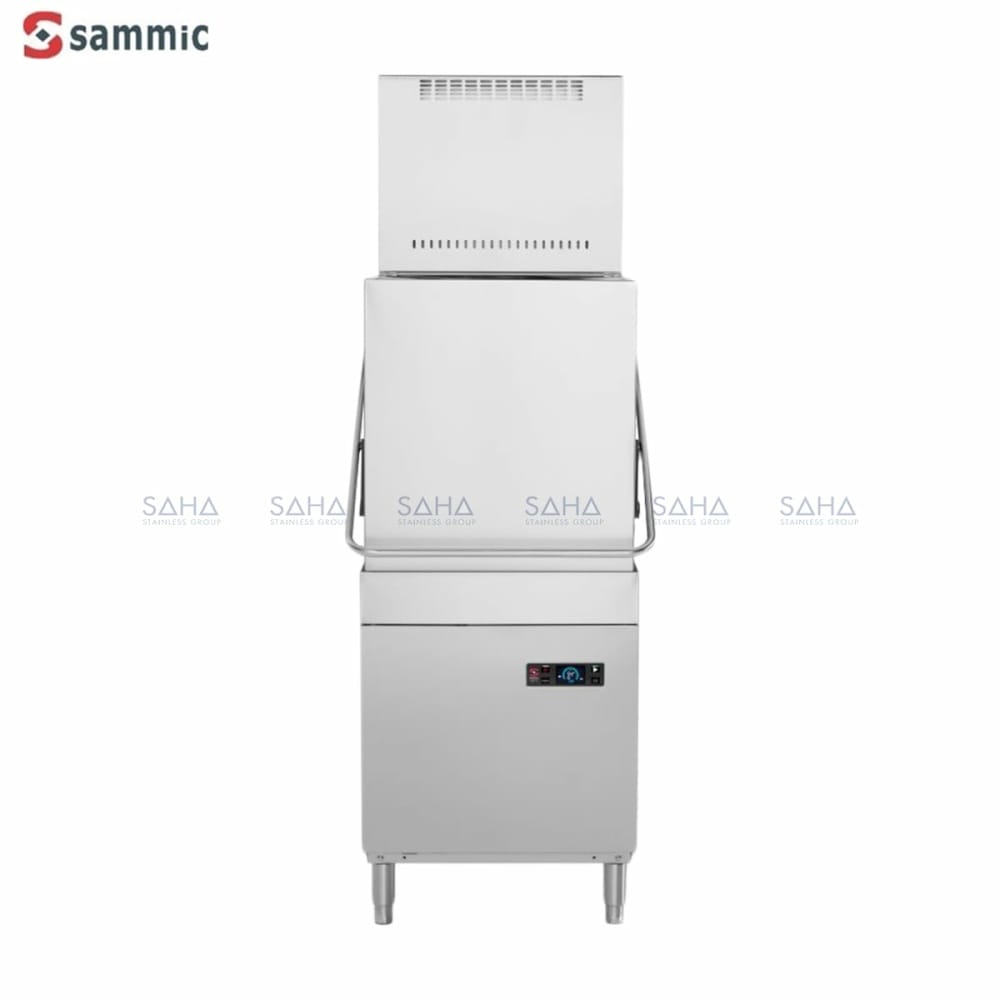

Sammic -Pass-through dishwasher UX-120CV

Sammic -Pass-through dishwasher UX-120CV

Rack size 500x500mm and door clearance 430 mm.

  • Sani-Control: guaranteed disinfection
    Exclusive Hydroblade™ washing arms: maximum effectiveness.
    3-stage filtering system.
    Steam condenser: environmental improvement and energy efficiency.































Sani-Control guarantee

  • GUARANTEED DISINFECTION in compliance with standard DIN 10534.
  • THERMAL LOCK function: Ensures that rinsing will be carried out at the ideal temperature to disinfect the dishes.
  • CONSTANT HIGH TEMPERATURE RINSE system for optimal disinfection.
  • The PRESSURE PUMP guarantees effective high-pressure rinsing
  • WRAS certified

Steam condenser

  • Reduces the steam released into the installation by 75%.
  • Factory-integrated condenser module, no installation required.

New recessed bodywork

  • Ergonomic design with rounded corners to prevent the accumulation of dirt and facilitate cleaning.
  • Compact tank volume (50% water saving compared to the previous range).

Hydroblade™ washing arms

  • Redesigned nozzles for greater washing performance.
  • The “monoblock” design delivers durability and resistance to impacts.
  • 30% savings in water consumption during rinsing compared to the previous range.

3-stage filter system: surface, tank and extraction

  • Keeps the washing water in optimal conditions to maintain constant washing performance.

Designed to last

  • Flow” opening mechanism: allows the hood to be raised with less effort
  • High load capacity 43 cm: suitable for GN 1/1 and Euronorm
  • Stainless steel surface filters for greater stability and resistance during intensive use

Premium warewashing

  • Soft start: progressive start-up of the washing pump to protect fragile items.
  • Colour LCD Display: intuitive communication of the machine status by means of messages, colour codes and icons.
  • Dedicated cycles: selection of the ideal washing programme using icons.
  • Adaptable: allows the main parameters of the machine to be adjusted to the needs of each user.
  • Wash Plus+ function: increases the intensity of the wash cycle for greater cleaning performance
  • Control panel with IP65 humidity protection.

You will never WASH ALONE

  • Tech-Services: our team of technicians will help you so that your machine is always ready for use.
  • Design Services: tell us what your needs are and we will advise you.
  • 60 years of experience and know-how at your disposal.

External dimensions (WxDxH)

  • Width:650 mm (Wide with handle: 725 mm)
  • Depth: 755 mm (Bottom with handle: 835 mm)
  • Height: 2035 mm / 2035 mm
  • Net weight: 125 kg
    Wash temperature: 65 ºC
    Rinse temperature: 87 ºC
    Noise level (1m.): <70 dB(A)

Default equipment

  • Rinse aid pump.
    1 glasses basket.
    1 mixed basket (plates).
    1 cutlery basket.
    Drainage pump with level sensor. Proactive tank water renewal.
