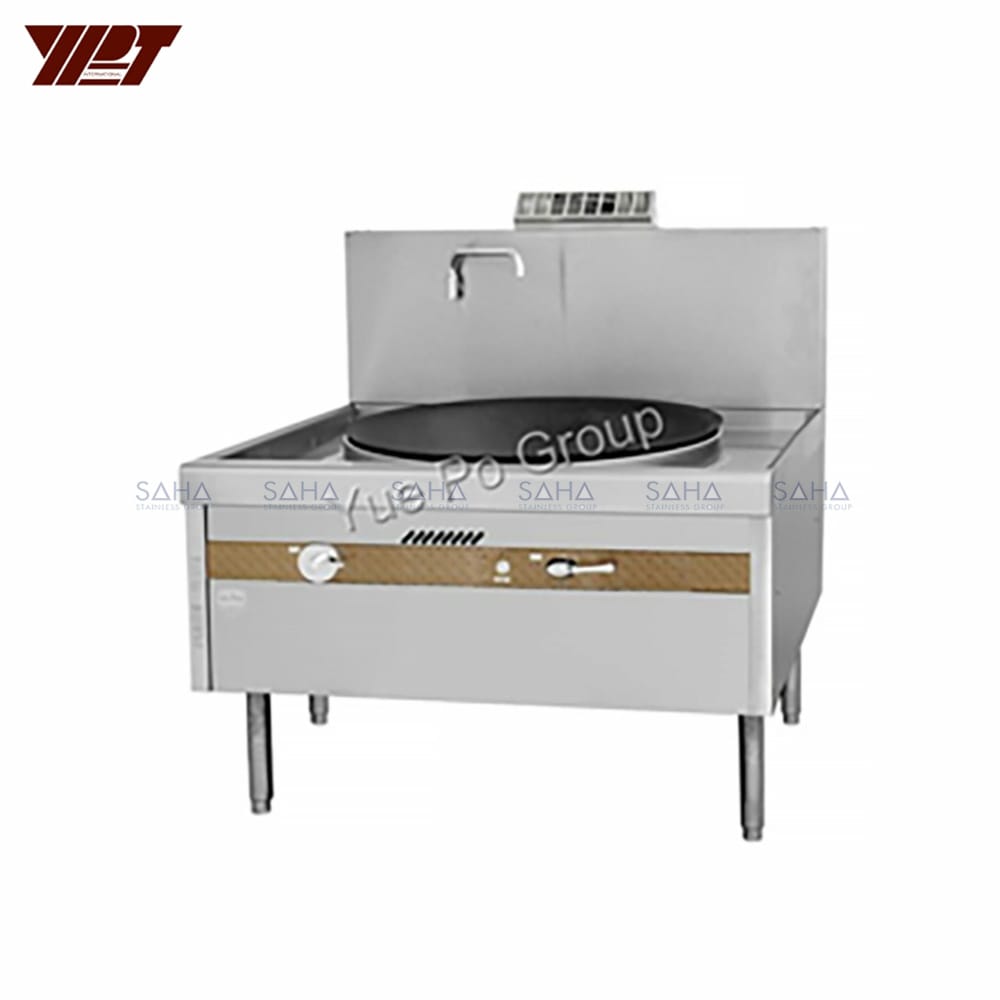

YPT – Flame-Mate 2.0 – 1 Ring Burner – Large Wok Range – ECR-1-BF(E)5

YPT – Flame-Mate 2.0 – 1 Ring Burner – Large Wok Range – ECR-1-BF(E)5

  • Environmental Cooking Range, Large Wok Range – 1 Ring



Share

รายละเอียดเพิ่มเติม

SPECIFICATIONS
Function –          For bulk cooking purpose

–          For Back of House usage

Form –          1200 width x 1250 depth x (810 + 360 backsplash) height in mm
Construction –          Equip with patented 5” pre-mixing burner with dia 130mm heat zone, operational noise < 70dB(A)

–          Flame observation window

–          One push button for flame failure device, blower and ignition

–          One-piece molded clay burner chamber

–          Metal framework is made of AISI 304 stainless steel

–          Insulation underneath tabletop

–          1 nos of swivel faucet mounted on backsplash

Engineering/

MEP ratings

–          Type of Gas: LPG / NG / Town Gas, specify when ordering

–          Gas power: 48kW, at 0.5 psi

–          Gas connection size: DN20

–          Water supply connection size: DN15

–          Water drainage connection size: DN40

–          Electrical connection for blower: 220V/SPN/50Hz/130W

Capacity –          Built in 32” cast iron wok
Sanitation –          Extruded seamless table top

–          Removable perforated drainage for hygiene.

Accessories –          Wok stand (Standard)
Safety –          Electromagnetic valve with instant gas cut off (<3s)

–          Extra width exhaust with cover design for reduction of CO

Option –          Gas regulator (recommended)



ข้อมูลเพิ่มเติม

Brand

YPT
