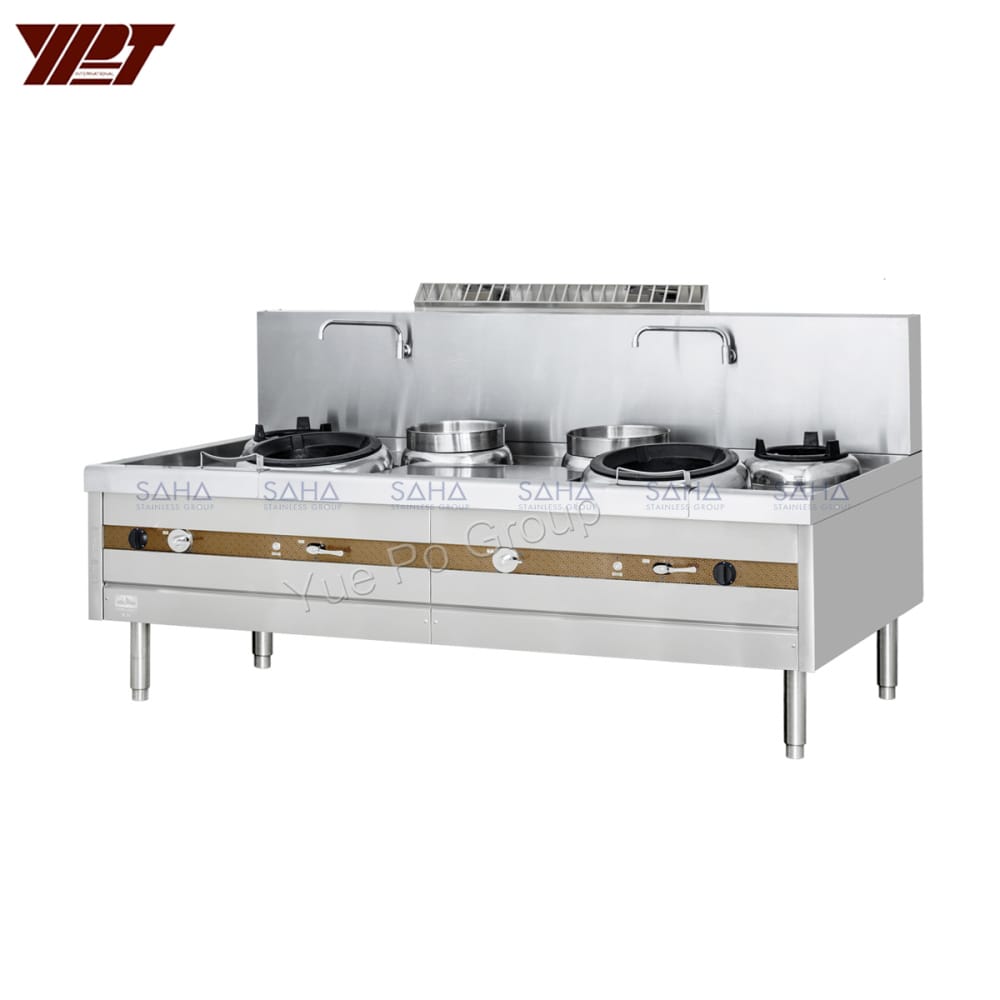

YPT – Flame-Mate 2.0 – 2 Ring Burner – Shanghai Standard Style – ECR-2-SF(E)5
YPT – Flame-Mate 2.0 – 2 Ring Burner – Shanghai Standard Style – ECR-2-SF(E)5
- Environmental Cooking Range, Shanghai Standard Style – 2 Rings
รายละเอียดเพิ่มเติม
SPECIFICATIONS |
|
Function | – Fast stir-frying, batch cooking and Shanghai style cook.
– For Back of House usage |
Form | – 2400 width x 1250 depth x (810 + 360 backsplash) height in mm |
Construction | – Equip with patented 5” pre-mixing burner with dia 130mm heat zone, operational noise < 70dB(A)
– 6” mandarin rear burner – One push button for flame failure device, blower and ignition – One-piece molded clay burner chamber – Metal framework is made of AISI 304 stainless steel – Insulation underneath tabletop – 2 nos of swivel faucet mounted on backsplash |
Engineering/
MEP ratings |
– Type of Gas: LPG / NG / Town Gas, specify when ordering
– Gas power: (48kW + 5kW) x 2 = 106kW, at 0.5 psi – Gas connection size: DN40 – Water supply connection size: DN15 – Water drainage connection size: DN40 – Electrical connection for blower: 220V/50Hz/130W x 2 |
Capacity | – Inner Dia 13” cast iron ring for 16” – 20” wok x 2 nos
– Dia. 9” Rear pot for water storage x 2 nos |
Sanitation | – Extruded seamless table top
– Removable perforated drainage for hygiene. |
Accessories | – Wok stand (Standard)
– Basket holder (Standard) – Cold water pan (Standard) |
Safety | – Electromagnetic valve with instant gas cut off (<3s)
– Extra width exhaust with cover design for reduction of CO |
Option | – Gas regulator (recommended) |
ข้อมูลเพิ่มเติม
Brand | YPT |
---|
