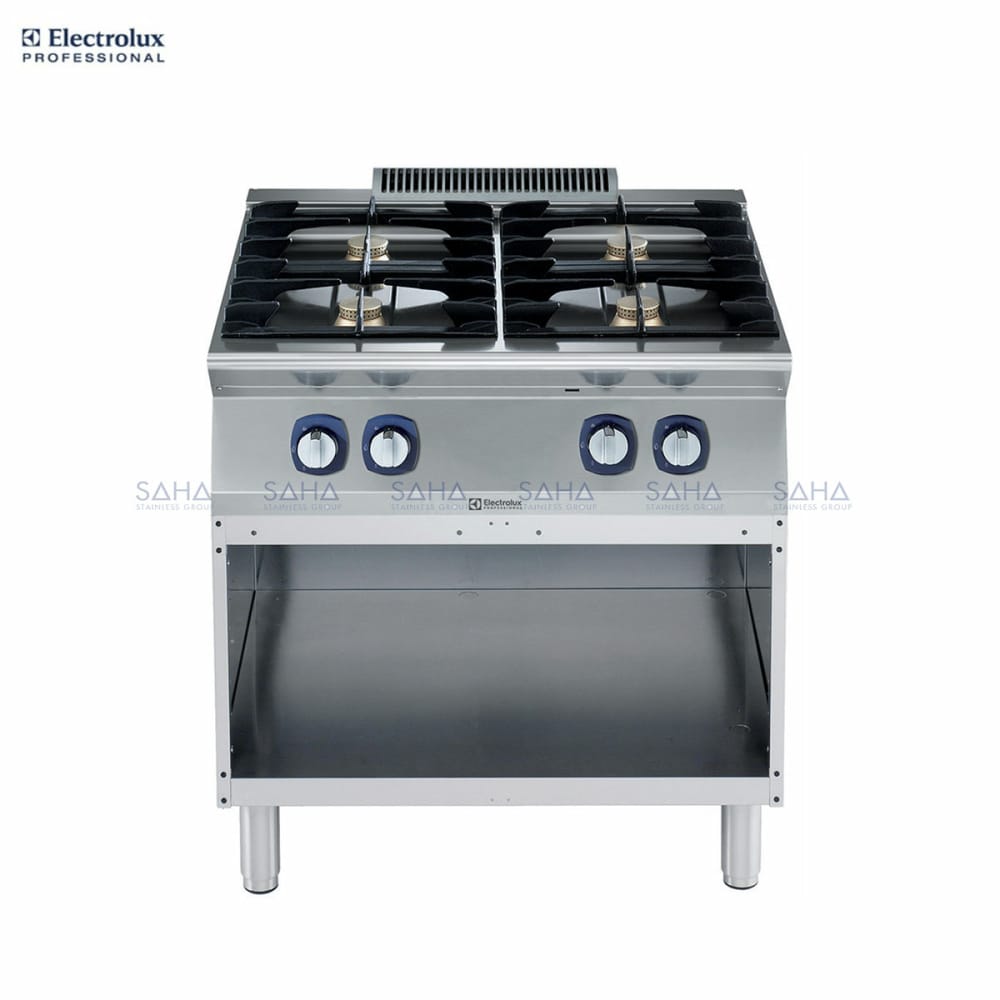

Electrolux – 700XP – 4-Burner Gas Boiling Top on Open Base 800mm – 371178

Electrolux – Modular Cooking Range Line – 700XP – 4-Burner Gas Boiling Top on Open Base 800mm – 371178

4-burner (5,5 kW each) gas range on open base



รหัสสินค้า: 371178 หมวดหมู่: , ป้ายกำกับ: , , , , , ,


Product Features

  • Unit can be easily installed below other 700 line top models.
  • Unit delivered with 50 mm height adjustable feet in Stainless steel.
  • Open base compartment for storage of pots, pans, sheet pans, etc.
  • Doors with handles, drawers, heating kits and runners for GN containers can be ordered separately.
  • Unit to be mounted on open base cupboards, bridging supports or cantilever systems.
  • The four 5.5 kW high efficiency flower flame burners allow the flame to adapt to different size pans.
  • Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
  • Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
  • Pan supports in cast iron are washable in a dishwasher.
  • Burners to feature flame regulator.
  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
  • Protected pilot light.
  • IPX 4 water protection.
  • Constructed in Stainless steel with Scotch Brite finish to meet the highest hygiene standards.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • One piece pressed 1.5 mm work top in Stainless steel.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.




  • Gas Power: 22 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG;Town
  • Gas Inlet: 1/2″


Key Information:

  • Front Burners Power: 5.5 – 5.5 kW
  • Back Burners Power: 5.5 – 5.5 kW
  • Back Burners Dimension – mm Ø 60 Ø 60
  • Front Burners Dimension – mm Ø 60 Ø 60
  • External dimensions, Width: 800 mm
  • External dimensions, Height: 850 mm
  • External dimensions, Depth: 700 mm
  • Net weight: 50 kg
  • Shipping weight: 65 kg
  • Shipping height: 1080 mm
  • Shipping width: 820 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.76 m³
  • If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
  • Certification group: N7CG



Electrolux Professional
