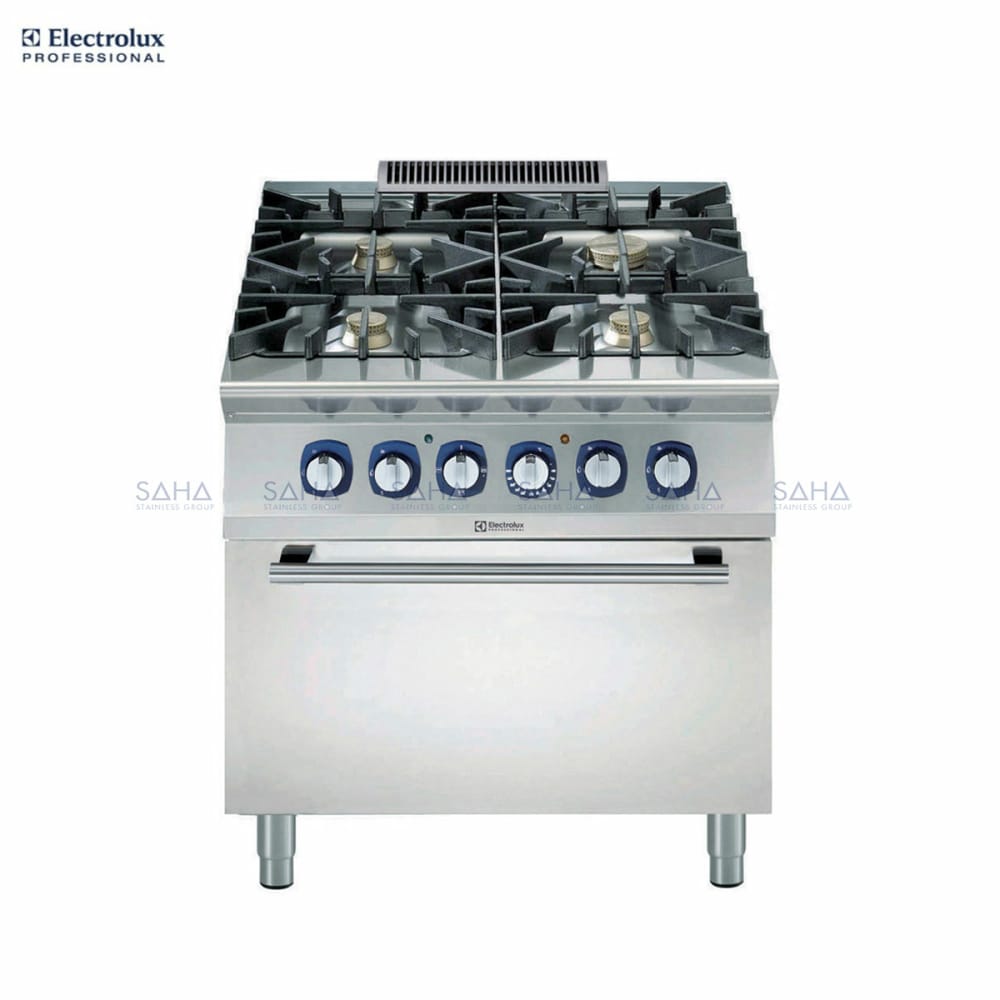

Electrolux – 900XP – 4-Burner Gas Range on Electric Oven – 391010

รายละเอียดเพิ่มเติม

Product Features

• Unit to be mounted on stainless steel feet with height adjustment up to 50 Unit can be easily mounted on cantilever systems.
• The three 6 kW and one 10 kW high efficiency burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
  • 60 mm burners with continuous power regulation from 1,5 to 6 kW
  • 100 mm burners with continuous power regulation from 2 kW to 10 kW
• Gas burners supplied for use with natural or LPG gas, conversion jets supplied as standard.
• Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
• Burners with optimized combustion.
• Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
• Protected pilot light.
• Base compartment consists of an electric standard oven with 40 mm thick oven door for heat insulation, positioned beneath the base plate.
• Oven chamber with 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans).
• Ribbed cast iron oven base plate.
• Oven thermostat adjustable from 110 °C to 285 °C or from 120 °C to 280 °C for model
• The special design of the control knob system guarantees against water infiltration.
• IPX5 water protection.
• Unit is 930 mm deep to give a larger working surface area.
• All exterior panels in Stainless Steel with Scotch Brite finishing.
• AISI 304 stainless steel worktop, 2mm thick.
• Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Specifications

Electric

• Predisposed for: 380-400V 3N~ 50/60Hz 5-6kW

Gas

• Gas Power: 28 kW
• Standard gas delivery: Natural Gas G20 (20mbar)
• Gas Type Option: LPG;Natural Gas
• Gas Inlet: 1/2″

Key Information:

• Front Burners Power: 6 – 6 kW
• Back Burners Power: 6 – 10 kW
• Back Burners Dimension – mm Ø 60 Ø 100
• Front Burners Dimension – mm Ø 60 Ø 60
• Oven Heat Input: 6 kW
• Oven working Temperature: 110 °C MIN; 285 °C MAX
• Oven Cavity Dimensions (width): 575 mm
• Oven Cavity Dimensions (height): 300 mm
• Oven Cavity Dimensions (depth): 700 mm
• External dimensions, Width: 800 mm
• External dimensions, Height: 850 mm
• External dimensions, Depth: 930 mm
• Net weight: 155 kg
• Shipping weight: 140 kg
• Shipping height: 1080 mm
• Shipping width: 1020 mm
• Shipping depth: 860 mm
• Shipping volume: 95 m³
• Certification group: N9CG
