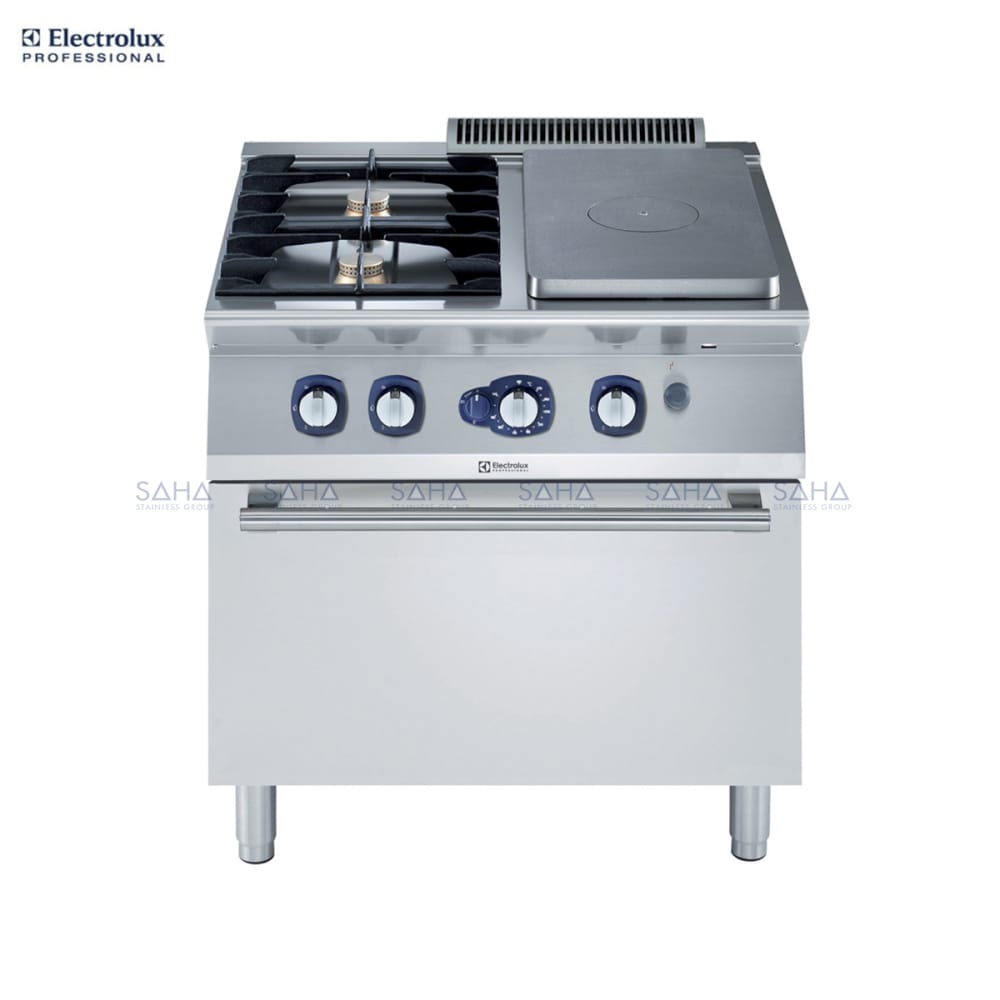

Electrolux – 700XP – Gas Solid Top on Gas Oven with 2 Burners – 371009

Electrolux – 700XP – Gas Solid Top on Gas Oven with 2 Burners – 371009

Half module gas solid top (3,8 kW) with 2 burners (5,5 kW each) on gas oven (6 kW)








Product Features

  • Gas heated, 3.8 kW central burner, solid top.
  • Durable cast iron cooking plate, easy to clean.
  • The center of the plate can reach a maximum temperature of 500 °C while decreasing outwards.
  • Central burner with optimized combustion, flame failure device and protected pilot light.
  • Temperature gradients to satisfy different cooking needs, provided over the whole plate thanks to the temperature fine-tuning by zone.
  • Various sizes of pans can be used at the same time due to large surface area with no intermediate sectors.
  • Pans can easily be moved from one area to another without lifting.
  • Base compartment consists of a gas heated standard oven with stainless steel burners and self stabilizing flame positioned beneath the base plate. Stainless steel oven chamber to have 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed enamelled steel base plate.
  • Oven thermostat adjustable from 110 °C to 270 °C.
  • Burners with optimized combustion interchangeable on site.
  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
  • All major compartments located in front of unit for ease of maintenance.
  • IPX4 water resistance certification.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • One piece pressed 1.5 mm work top in Stainless steel.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.



  • Gas Power: 20.6 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG
  • Gas Inlet: 1/2″

Key Information

  • Front Burners Power: 5.5 – kW
  • Back Burners Power: 5.5 – 0 kW
  • Back Burners Dimension – mm Ø 60
  • Front Burners Dimension – mm Ø 60
  • Solid top usable surface (width): 340 mm
  • Solid top usable surface (depth): 595 mm
  • Oven working Temperature: 110 °C MIN; 270 °C MAX
  • Oven Cavity Dimensions (width): 540 mm
  • Oven Cavity Dimensions (height): 300 mm
  • Oven Cavity Dimensions (depth): 650 mm
  • External dimensions, Width: 800 mm
  • External dimensions, Height: 850 mm
  • External dimensions, Depth: 730 mm
  • Net weight: 90 kg
  • Shipping weight: 109 kg
  • Shipping height: 1080 mm
  • Shipping width: 820 mm
  • Shipping depth: 860 mm
  • Shipping volume: 0.76 m³
  • If appliance is set up or next to or against temperature sensitive furniture or similar, a safety gap of approximately 150 mm should be maintained or some form of heat insulation fitted.
  • Certification group: N7TG
