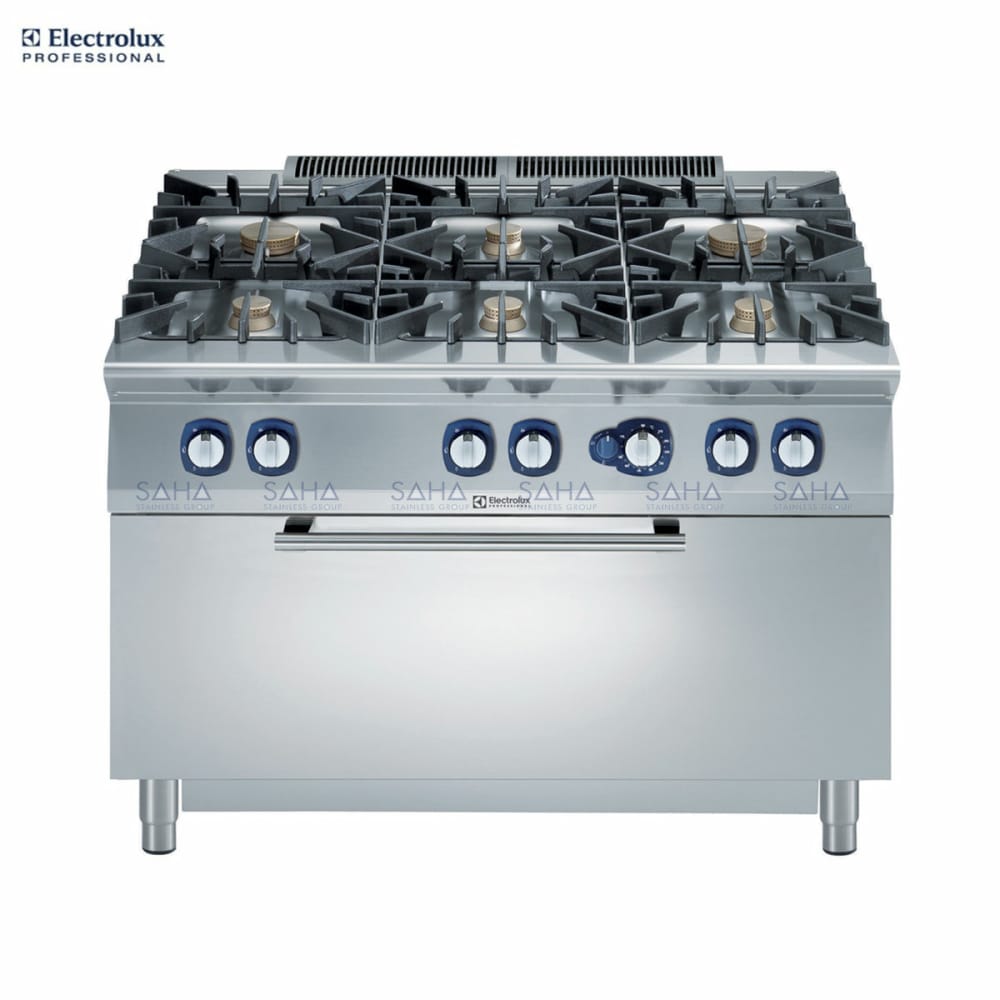

Electrolux – 900XP – 6-Burner Gas Range on Large Gas Oven – 391015

Electrolux – Modular Cooking Range Line – 900XP – 6-Burner Gas Range on Large Gas Oven – 391015

6-burner (2×10 kW, 4×6 kW) gas range on large gas oven (12 kW)





รหัสสินค้า: 391015 หมวดหมู่: , ป้ายกำกับ: , , , , , ,
Share

รายละเอียดเพิ่มเติม

Product Features

  • Unit to be mounted on stainless steel feet with height adjustment up to 50 mm. Unit can be easily mounted on cantilever systems.
  • The four 6 kW and two 10 kW high efficiency burners are available in two different sizes to suit high performing cooking requirements of the most demanding customers.
    • 60 mm burners with continuous power regulation from 1,5 to 6 kW
    • 100 mm burners with continuous power regulation from 2.2 kW to 10 kW
  • Gas appliance supplied for use with natural or LPG gas, conversion jets supplied as standard.
  • Large sized pan support in cast iron (stainless steel as option) with long center fins to allow the use of the largest down to the smallest pans.
  • Burners with optimized combustion.
  • Flame failure device on each burner protects against gas leakage when accidental extinguishing of the flame occurs.
  • Protected pilot light.
  • Base compartment consists of a large gas heated standard oven with stainless steel burners and self stabilizing flame positioned beneath the base plate. Oven chamber to have 3 levels of runners to accomodate 2/1 GN shelves (2 steam pans) and ribbed cast iron base plate.
  • Oven thermostat adjustable from 120 °C to 280 °C.
  • 40 mm thick oven door for heat insulation.
  • The special design of the control knob system guarantees against water infiltration.
  • IPX5 water protection.
  • Unit is 930 mm deep to give a larger working surface area.
  • All exterior panels in Stainless Steel with Scotch Brite finishing.
  • AISI 304 stainless steel worktop, 2mm thick.
  • Model has right-angled side edges to allow flush fitting joints between units, eliminating gaps and possible dirt traps.

Specifications

Gas

  • Gas Power: 56 kW
  • Standard gas delivery: Natural Gas G20 (20mbar)
  • Gas Type Option: LPG;Natural Gas
  • Gas Inlet: 1/2″

Key Information:

  • Front Burners Power: 6 – 6 kW
  • Back Burners Power: 10 – 10 kW
  • Middle Burners Power: 6 – 0/6 – 0 kW
  • Back Burners Dimension – mm Ø 100 Ø 100
  • Front Burners Dimension – mm Ø 60 Ø 60
  • Middle Burners Dimension – mm Ø 60 Ø 60
  • Oven working Temperature: 120 °C MIN; 280 °C MAX
  • Oven Cavity Dimensions (width): 1000 mm
  • Oven Cavity Dimensions (height): 380 mm
  • Oven Cavity Dimensions (depth): 700 mm
  • External dimensions, Width: 1200 mm
  • External dimensions, Height: 850 mm
  • External dimensions, Depth: 930 mm
  • Net weight: 200 kg
  • Shipping weight: 219 kg
  • Shipping height: 1070 mm
  • Shipping width: 1020 mm
  • Shipping depth: 1300 mm
  • Shipping volume: 1.42 m³
  • Certification group: N9CG

ข้อมูลเพิ่มเติม

Brand

Electrolux Professional
