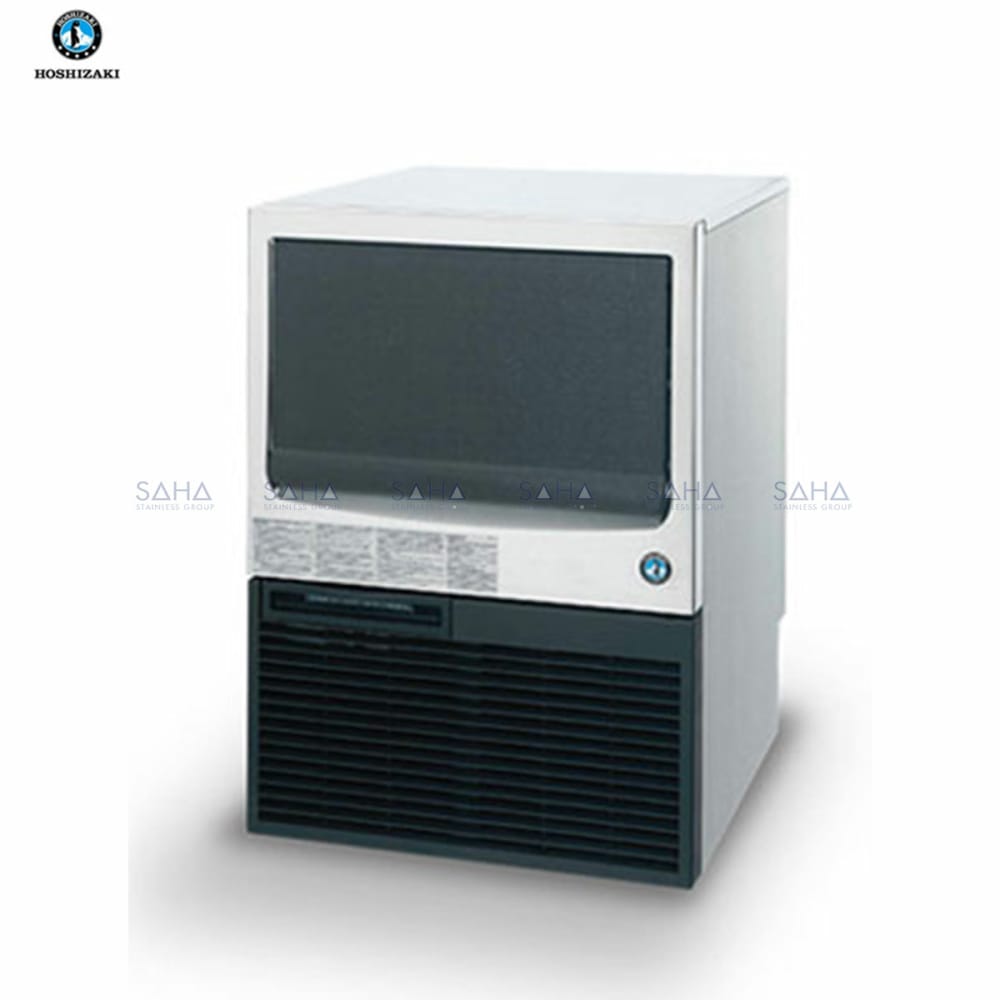

Hoshizaki – Ice Machine – KM-50A

รายละเอียดเพิ่มเติม

DIMENSIONS (WxDxH):  603 x 610 x 842 mm

PACKED DIMENSIONS (WxDxH): 690 x 705 x 955 mm

WEIGHT (NETT/GROSS): 46 KG / 58 KG

AMPERAGE / STARTING AMPERAGE: 2.2A / 10.7A

ELECTRICAL CONSUMPTION: 303 W

REFRIGERANT CHARGE: R134a/ 220g

HEAT REJECTION (AT32°C/WT21°C): 920 W (788 kcal/h)

STORAGE CAPACITY: 23 KG

OPERATING CONDITIONS: • Voltage Range:198V-254V • Ambient Temperature: 1°-40°C• Water Supply: 5°-35°C / 0.07-0.8 Mpa / 7.25-116 PSI • AC Supply Voltage: 1/220-240V / 50Hz

ICE PRODUCTION PER 24H (15MM)

(AT10°C/WT10°C)             52 KG

(AT21°C/WT15°C)             50 KG

(AT32°C/WT21°C)             41 KG

WATER CONSUMPTION PER 24H (AT21°C/WT15°C)

0.148 m3

3L / 1KG ICE

ICE PRODUCTION (AT21°C/WT15°C)

FREEZE CYCLE TIME         25 MIN

PER CYCLE           0.95 KG / 110 PCS
