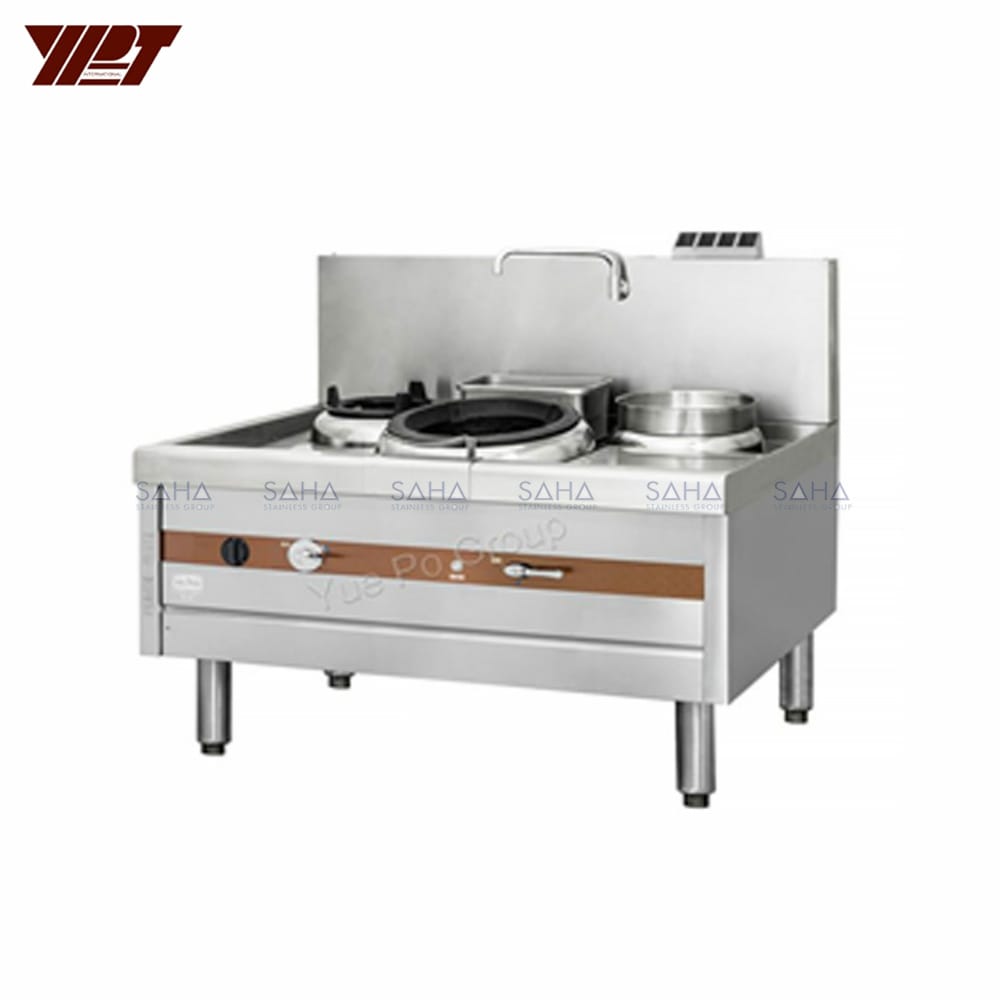

YPT – Flame-Mate 2.0 – 1 Ring Burner – Shanghai Compact Style – ECR-1-RF(E)5

YPT – Flame-Mate 2.0 – 1 Ring Burner – Shanghai Compact Style – ECR-1-RF(E)5

  • Environmental Cooking Range, Shanghai Compact Style – 1 Ring



Share

รายละเอียดเพิ่มเติม

SPECIFICATIONS

Function –          Fast stir-frying, batch cooking and Shanghai style cook.

–          For Back of House usage

Form –          1400 width x 1050 depth x (810 + 360 backsplash) height in mm
Construction –          Equip with patented 5” pre-mixing burner with dia 130mm heat zone, operational noise < 70dB(A)

–          6” mandarin rear burner

–          One push button for flame failure device, blower and ignition

–          One-piece molded clay burner chamber

–          Metal framework is made of AISI 304 stainless steel

–          Insulation underneath tabletop

–          1 nos of swivel faucet mounted on backsplash

Engineering/

MEP ratings

–          Type of Gas: LPG / NG / Town Gas, specify when ordering

–          Gas power: 48kW + 5kW = 53kW, at 0.5 psi

–          Gas connection size: DN20

–          Water supply connection size: DN15

–          Water drainage connection size: DN40

–          Electrical connection for blower: 220V/SPN/50Hz/130W

Capacity –          Inner Dia 13” cast iron ring for 16” – 20” wok

–          Dia. 9” Rear pot for water storage

Sanitation –          Extruded seamless table top

–          Removable perforated drainage for hygiene.

Accessories –          Wok stand (Standard)

–          Basket holder (Standard)

–          Cold water pan (Standard)

Safety –          Electromagnetic valve with instant gas cut off (<3s)

–          Extra width exhaust with cover design for reduction of CO

Option –          Gas regulator (recommended)



ข้อมูลเพิ่มเติม

Brand

YPT
