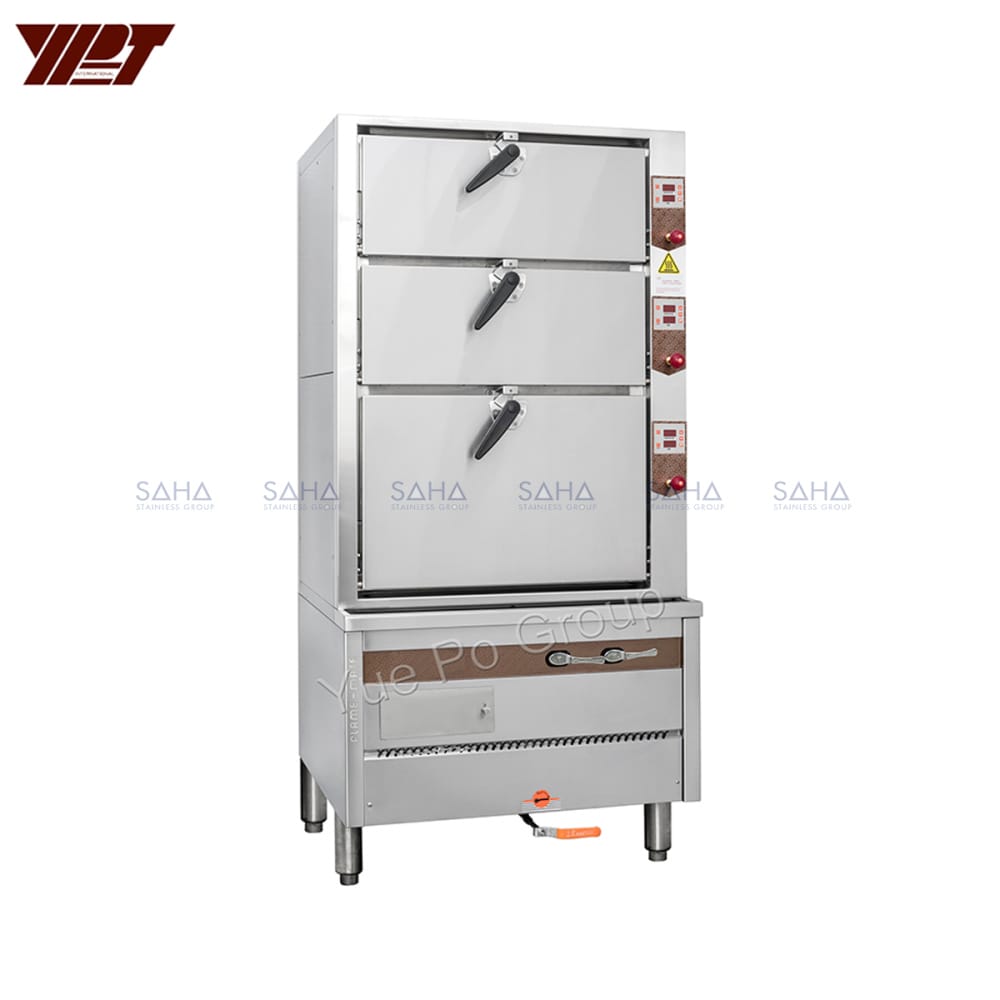

YPT – Flame-Mate 2.0 – Triple Door – Environmental Steamer Cabinet – ESC-3HC

YPT – Flame-Mate 2.0 – Triple Door – Environmental Steamer Cabinet – ESC-3HC

  • Environmental Steamer Cabinet, Triple Door




Function –          For steaming or cooking (multi deck)
Form –          900 width x 880 depth x 1900 height mm
Construction –          Insulated flue-tube heat exchanger with AISI444 for high efficiency of steam generation

–          One push button for flame failure device and ignition

–          Metal framework is made of AISI 304 stainless steel

–          Rotary handle with 2 steps locking system to prevent steam leakage

–          6” bullet feet with 1.5” drainage valve at bottom for preventing overnight storage of water inside heat exchanger

–          Digital timer and temperature display for individual chamber

–          Steam control valve


MEP ratings

–          Type of Gas: LPG / NG / Town Gas, specify when ordering

–          Gas power: 42kW, at 0.5 psi

–          Gas connection size: DN20

–          Water supply connection size: DN15

–          Water drainage connection size: DN40

–          Electrical connection for solenoid valve: 220V/SPN/50Hz/25W

Capacity –          Inner chamber dimension: 655 x 600 x 220 mm x 2 nos

–          Inner chamber dimension: 655 x 600 x 400 mm x 1 nos

–          Equipped with 4 pairs of rail for shelves

Sanitation –          Removable perforated drainage for hygiene.

–          Accessible boiler tank at bottom of chamber for de-limescale process

Accessories –          Extra railways and S/S shelvings

–          17” rice pan

Safety –          Electromagnetic valve with instant gas cut off (<3s)

–          Water level detection and overheat protection

Options –          Flat base for plinth installation, please specify when ordering

–          Gas Regulator (recommended)

Special Requirements –          Recommended to install water filter and water softener (especially for HARD water zone) to prevent limescale formation. Please check with KEC for details
