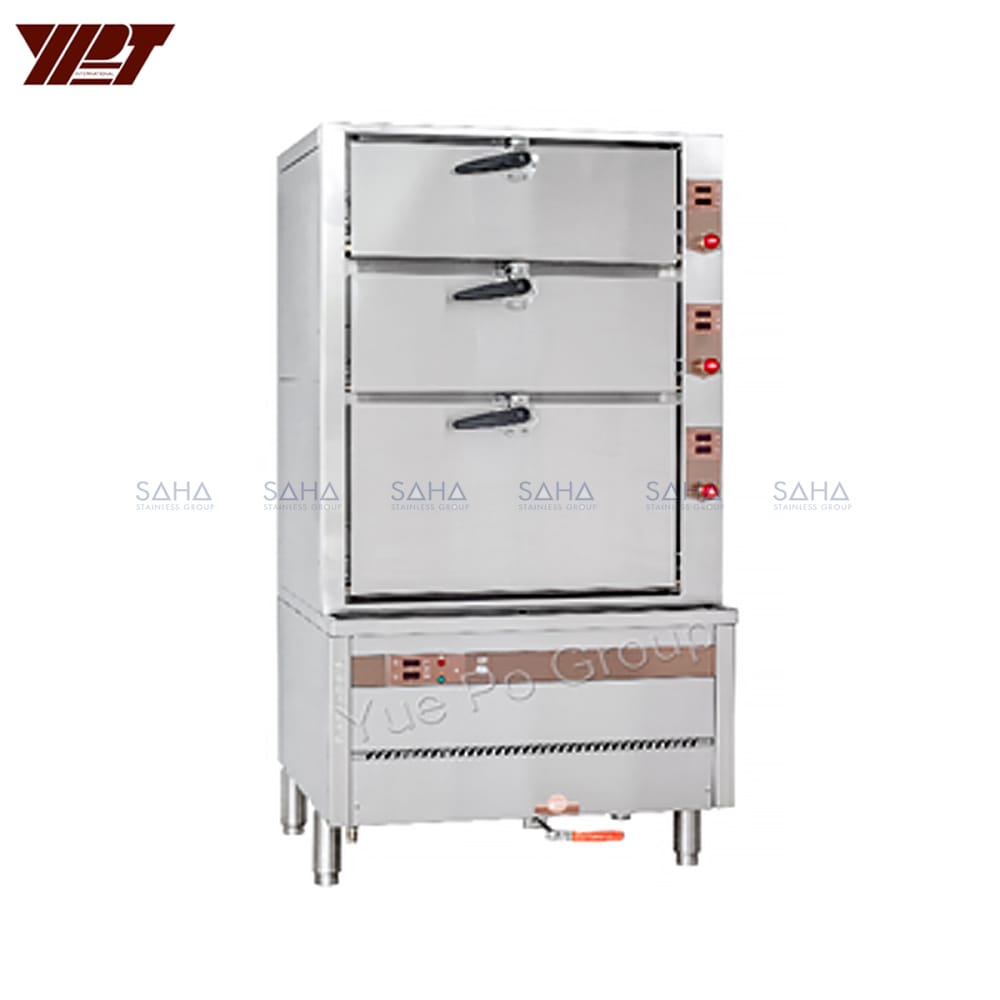

YPT – Flame-Mate 2.0 – Triple Door – Environmental Steamer Cabinet – ESC-3HX
YPT – Flame-Mate 2.0 – Triple Door – Environmental Steamer Cabinet – ESC-3HX
- Environmental Steamer Cabinet, Triple Door (1200mm Width)
รายละเอียดเพิ่มเติม
|
SPECIFICATIONS |
|
| Function | – For steaming or cooking (Mult deck) |
| Form | – 1200 width x 880 depth x 1900 height mm |
| Construction | – Insulated flue-tube heat exchanger with AISI444 for high efficiency of steam generation
– One push button for flame failure device, blower and ignition – Metal framework is made of AISI 304 stainless steel – Rotary handle with 2 steps locking system to prevent steam leakage – 6” bullet feet with 1.5” drainage valve at bottom for preventing overnight storage of water inside heat exchanger – Digital timer and temperature display for individual chamber – Steam control valve |
| Engineering/
MEP ratings |
– Type of Gas: LPG / NG / Town Gas, specify when ordering
– Gas power: 42kW, at 0.5 psi – Gas connection size: DN20 – Water supply connection size: DN15 – Water drainage connection size: DN40 – Electrical connection for solenoid valve: 220V/SPN/50Hz/25W |
| Capacity | – Inner chamber dimension: 955 x 600 x 220 mm x 2 nos
– Inner chamber dimension: 955 x 600 x 400 mm x 1 nos – Equipped with 4 pairs of rail for shelves |
| Sanitation | – Removable perforated drainage for hygiene.
– Accessible boiler tank at bottom of chamber for de-limescale process |
| Accessories | – Extra railways and S/S shelvings
– 17” rice pan |
| Safety | – Electromagnetic valve with instant gas cut off (<3s)
– Water level detection and overheat protection |
| Options | – Flat base for plinth installation, please specify when ordering
– Gas Regulator (recommended) |
| Special Requirements | – Recommended to install water filter and water softener (especially for HARD water zone) to prevent limescale formation. Please check with KEC for details |
ข้อมูลเพิ่มเติม
| Brand | YPT |
|---|
